Gedetailleerde informatie

Model:	SV-serie	Productnaam:	Volautomatische zichtmeetmachine - SV3
Herhaalbaarheid:	2 um	Nauwkeurigheid:	2+L/200um
Lineaire schaalresolutie:	0,5 µm (0,1 µm optioneel)	Meetmodus:	Volledig automatisch
Steun:	OEM, ODM, maatwerk	Toepassingsscenario:	Laboratorium/industrie
Garantie:	12 maanden	Gewicht (kg):	400
Het meten van woede:	300/300/200
Markeren:	SV Series optical measuring instrument , 3-axis auto programming inspection machine , MARB base vision measurement machine

Productomschrijving

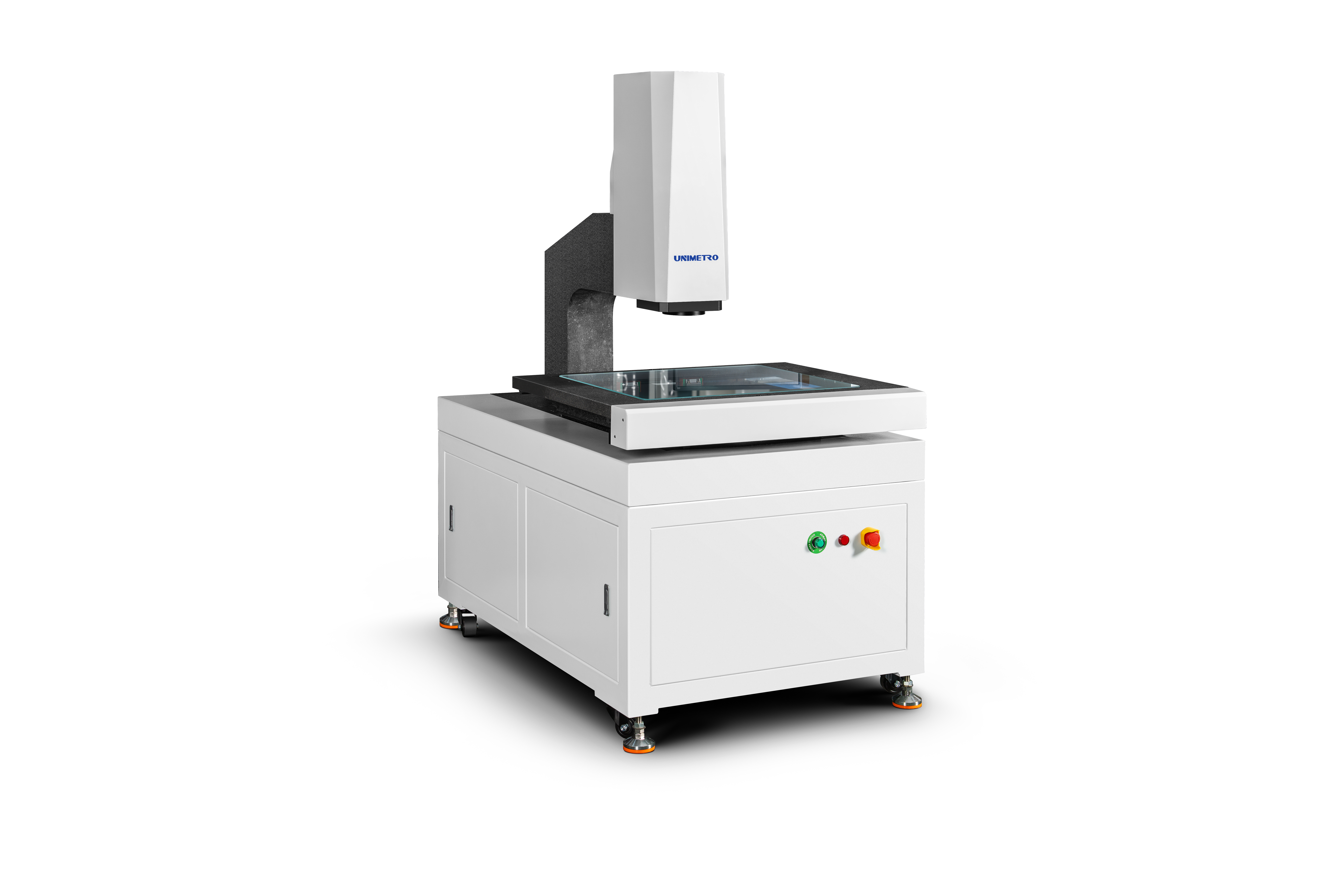

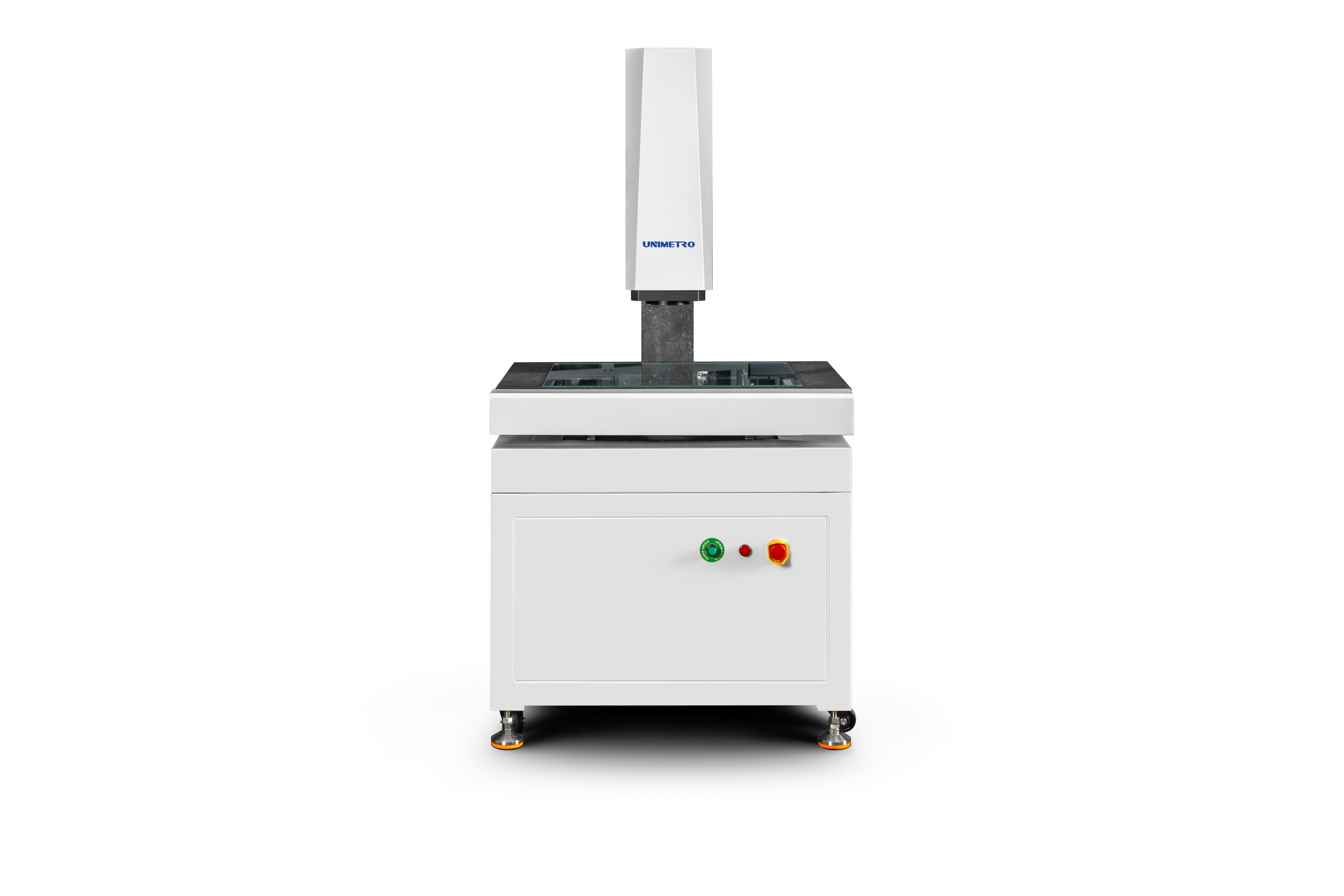

SV Series High-Configuration Optical Measuring Instrument

Product Overview

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring Multi-Axis Resolution Base (MARB) and Super Stable Video (SV) technology. This high-configuration system offers superior resolution and faster processing speeds, enabling three-axis fully automatic programmable detection.

By matching the workpiece coordinate system through programming, it automatically executes measurement processes. For repeated measurements of heavy workpieces, it includes memory, learning, and auto-programming functions, facilitating rapid and accurate real-time measurement on-site. The marble construction provides high stability, strong durability, and low maintenance costs, perfectly balancing precision, efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.

Technical Specifications

Model	SV-3	SV-4	SV-5	SV-6
Dimension (mm) (X/Y/Z)	650/950/1740	730/1040/1740	790/1130/1760	890/1370/1780
Measuring range (mm) (X/Y/Z)	300×200×200	400×300×200	500×400×300	600×500×200
Accuracy (μm)	2 + L/200	2 + L/200	2 + L/200	2.5 + L/100
Repeatability (μm)	2	2	2.5	2.5
Weight (kg)	400	500	600	700

Additional Specifications

Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (varies by camera model)
Work Distance: 85 mm
Illumination: Programmable surface light, LED bottom parallel light (Optional: coaxial light)
Drive System: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear Scale Resolution: 0.1μm

Applications

Plastic parts

Metal parts

Stamping mold

Rubber part

Electronic part

PCBA part

Gear part

Key Features

High Rigid Structure Design

Closed frame moving bridge structure with fixed workpiece positioning for superior bearing capacity and motion performance
Finite element analysis technology integrated into mechanical design for high rigidity and precision
Grade 000 granite base with high strength, corrosion resistance, and excellent stability
Aluminum oxide surface treatment worktable for fast, flexible action control with durability and aesthetics

High Precision Configuration

RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
Precision linear guide rail, ball screw, and AC servo motor ensure stable positioning accuracy
2M pixel high-definition color Giga digital camera for clear observation and stable measurement
6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration

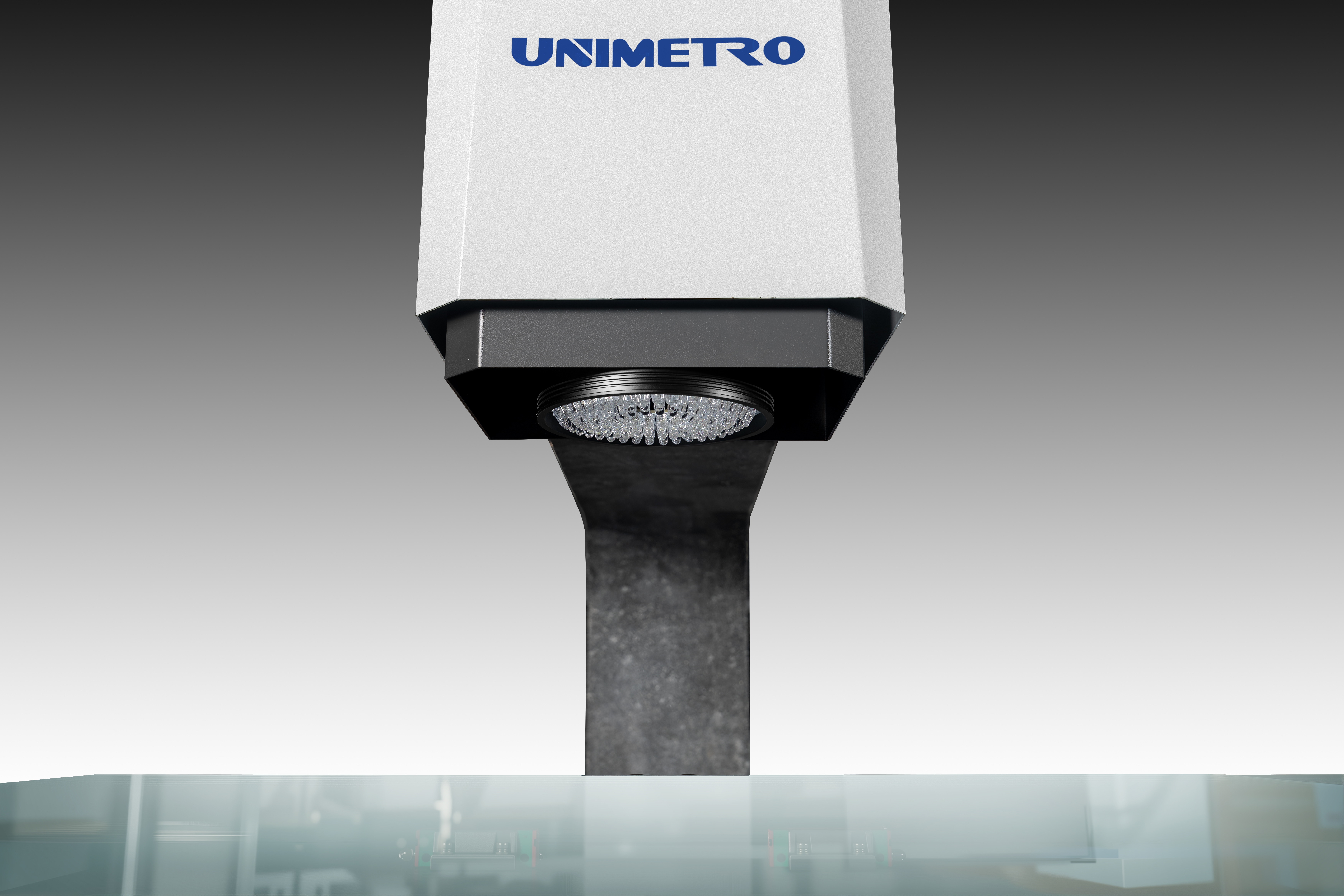

Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256-level brightness adjustment
Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement

HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and accommodates RENSHAW full series probe brackets, enabling automatic transformation for full-scale measurement on a single device to maximize productivity.

Plaats van herkomst:	Guangdong, China
Merknaam:	UNIMETRO
Certificering:	CE,ISO
Modelnummer:	SV-serie

Min. bestelaantal:	1 set
Prijs:	onderhandelbaar
Verpakking Details:	Houten behuizing + vacuümpakket
Levertijd:	15 ~ 20 dagen
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen:	5 sets per maand
