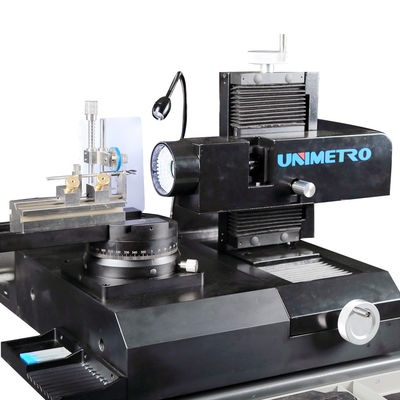

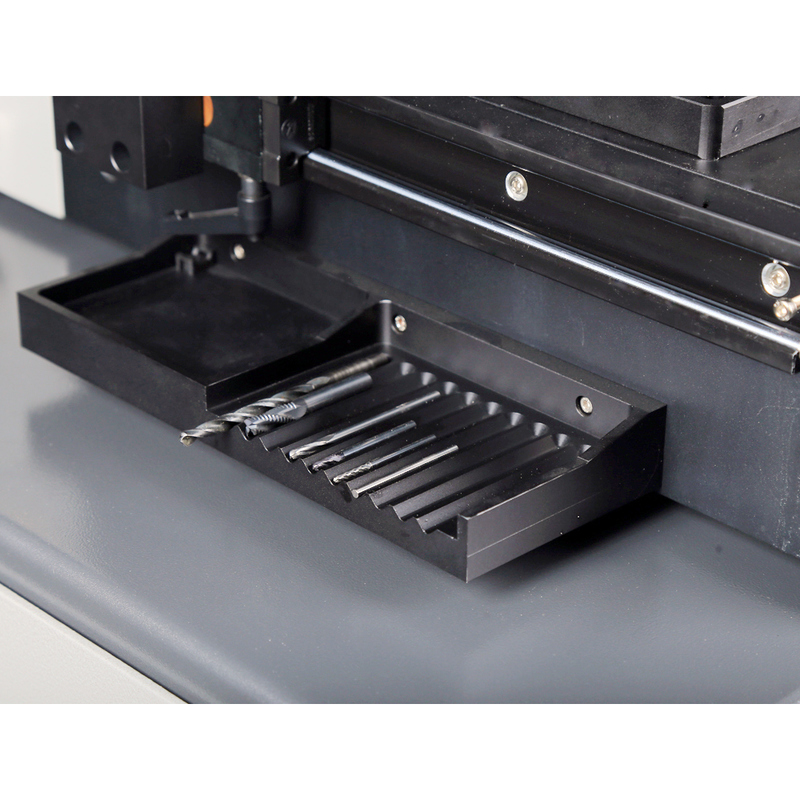

Tool Inspection System with 80mm X Axis Travel 60mm Y Axis Travel and 60mm Z Axis Measuring Range for Cutting Tools

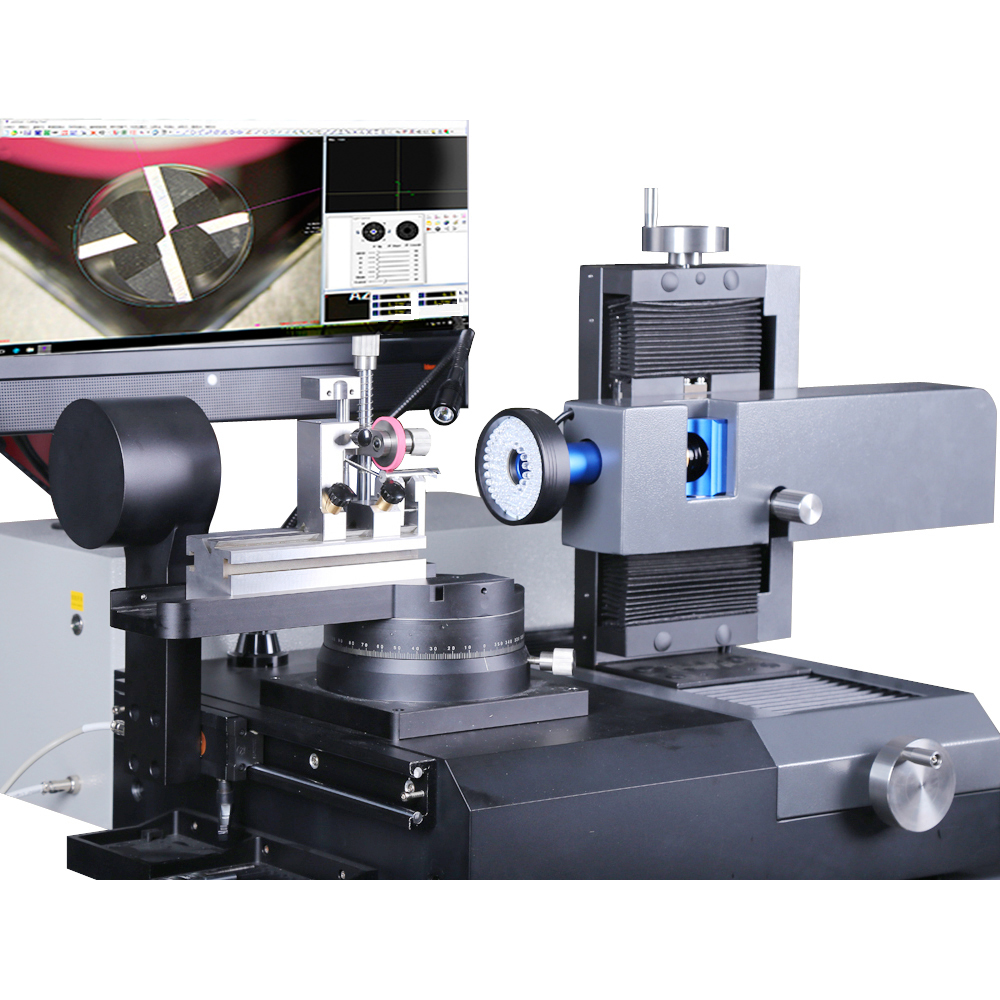

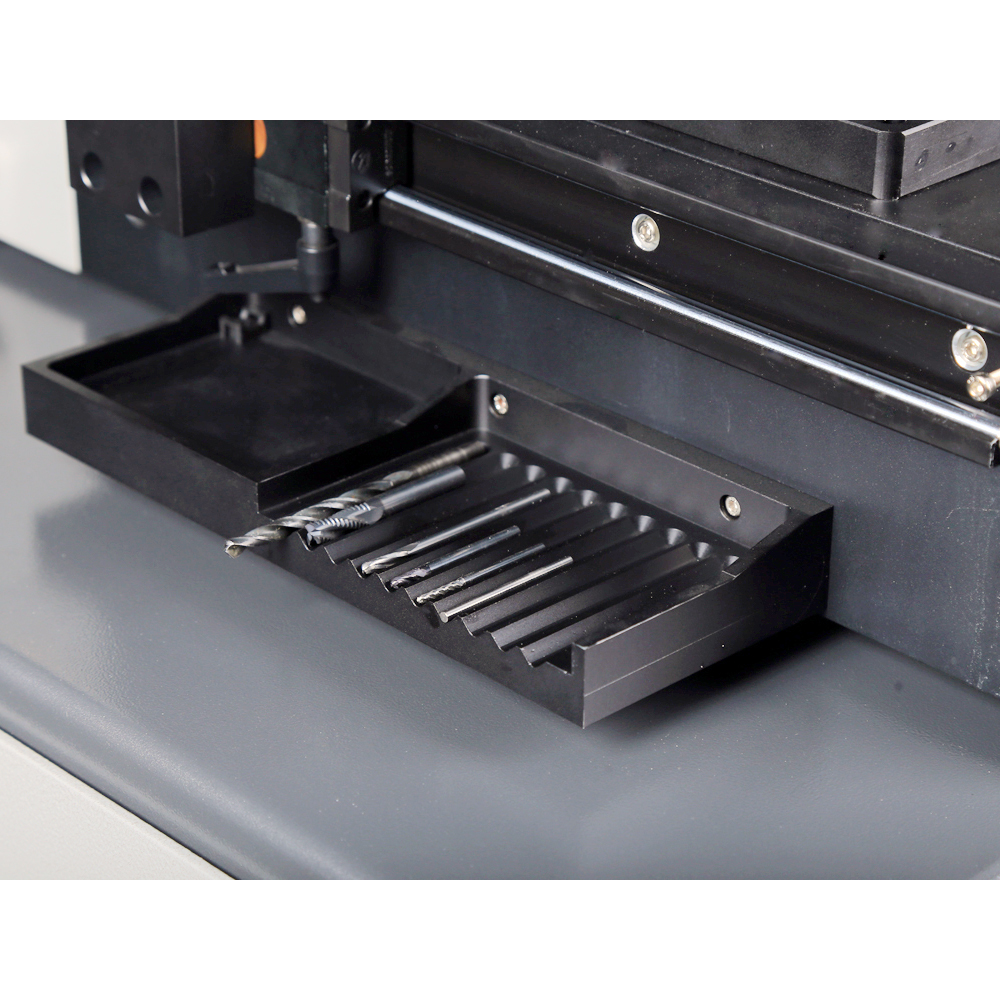

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Thanks to its compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.

Configured with SMARTOOL universal measuring software, the RANGER600 is the ideal instrument for all types of metal cutting tools, from fast checking of single criteria to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.

The rotary table of the RANGER600 offers two mechanical fixed angles (0° and 90°) for fast and precise tool angle location during measurement. The 0° position enables measurement of Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is suitable for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle measurements.

For other angle requirements, users can utilize the accurate encoder embedded in the rotary table, with angle readings displayed in the software.

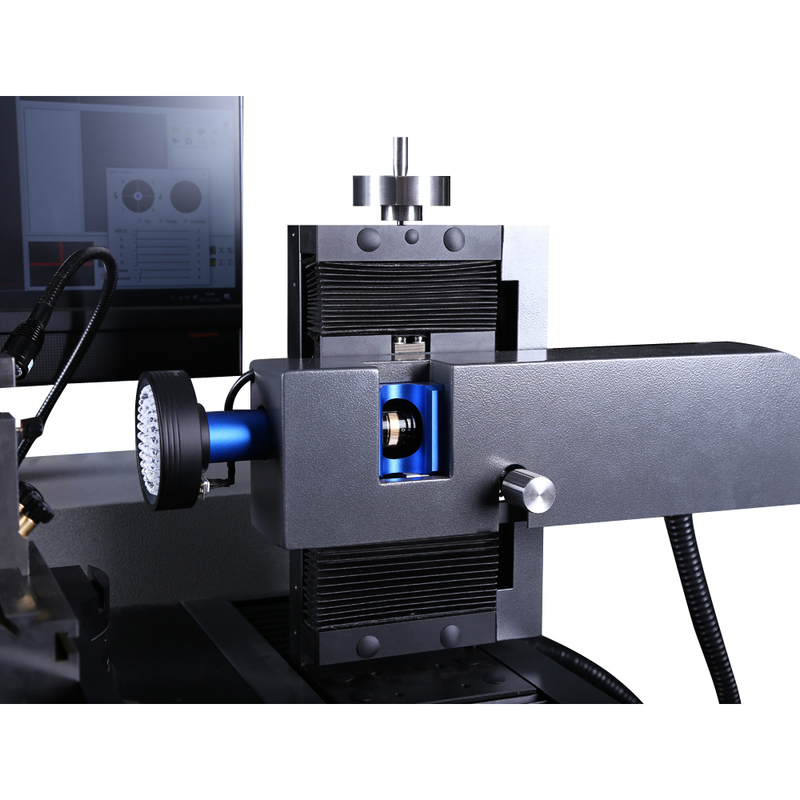

The system includes a dimmable additional light on a flexible arm for local image enhancement, and a parallel light path contour LED light module that moves along the X axis to provide optimal imaging for tool contour measurement.

The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, offering intuitive operation and numerous measuring algorithms specifically for tools manufactured or sharpened in grinding business.

UNIMETRO is a professional manufacturer of metrology equipment with over 10 years of experience, offering high performance products at reasonable prices. We specialize in medium-high level metrology products, providing complete high accuracy measuring solutions for customers.
